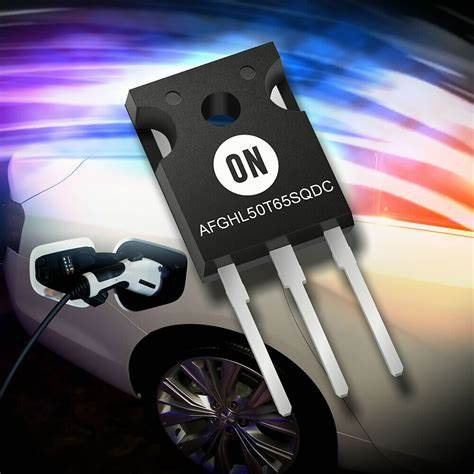

安森美汽车级IGBT单管

安森美IGBT单管平衡 VCE(sat)和 Eoff损耗以及可控的关断 Vce过冲，提供最佳性能。它们还以正温度系数、低饱和电压 (VCE(sat))、极低的开关和导通损耗以及快速开关提供极高的可靠性和性能。它们非常适合高性能电源转换应用，甚至经过设计和认证，适用于汽车和工业应用。

Product	Description	Compliance	Status	V(BR)CES Typ (V)	IC Max (A)	VCE(sat) Typ (V)	VF Typ (V)	Eoff Typ (mJ)	Eon Typ (mJ)	Trr Typ (ns)	Irr Typ (A)	Gate Charge Typ (nC)	Short Circuit Withstand (µs)	EAS Typ (mJ)	PD Max (W)	Co-Packaged Diode	Package Type
AFGB30T65RQDN	IGBT - 650V 30A -Short circuit rated FS4 - Automotive	AEC Qualified PPAP Capable Pb-free	ActiveNEW	650	30	1.58	1.71	0.56	0.78	44	18.4	38	5		235.48	Yes	D2PAK-3 / TO-263-2
AFGB40T65RQDN	IGBT - 650 V 40 A - Short circuit rated FS4 - Automotive qualified	AEC Qualified PPAP Capable Pb-free	ActiveNEW	650	40	1.55	1.68	0.75	1.18	52	20	51	5		339.37	Yes	D2PAK-3 / TO-263-2
AFGB30T65SQDN	IGBT 650V FS4 High speed version for OBC application in D2PAK	AEC Qualified PPAP Capable Pb-free	Active	650	30	1.6	1.5	0.16	0.786	131		56	-	-	220	Yes	D2PAK-3 / TO-263-2
AFGB40T65SQDN	IGBT, 650V FS4 High speed version, for OBC application in D2pak	AEC Qualified PPAP Capable Pb-free	Active	650	40	1.6	1.5	0.229	0.858	131		76	-	-	238	Yes	D2PAK-3 / TO-263-2
AFGH75T65SQ	IGBT - 650 V FS4 standalone IGBT	AEC Qualified PPAP Capable Pb-free	Active	650	75	1.6		0.21	0.61			139			375	No	TO-247-3LD
AFGHL25T120RHD	IGBT - Automotive Grade low cost 1200 V 25 A	AEC Qualified PPAP Capable Pb-free Halide free	Active	1200	40	1.84	1.43	0.77	1.94	159	0	189	8		130	Yes	TO-247-3LD
AFGHL25T120RLD	IGBT - Automotive Grade 1200 V 25 A	AEC Qualified PPAP Capable Pb-free Halide free	Active	1200	25	1.73	1.43	0.73	1.94	112		277	9		200	Yes	TO-247-3LD
AFGHL30T65RQDN	IGBT - 650 V 30 A - Short circuit rated FS4 - Automotive qualified	AEC Qualified PPAP Capable Pb-free	Active	650	30	1.57	1.7	0.54	0.79	39	17.7	37.22	5		230.8	Yes	TO-247-3LD
AFGHL40T120RHD	IGBT - Automotive Grade low cost 1200 V 40 A	AEC Qualified PPAP Capable Pb-free Halide free	Active	1200	40	1.95	1.5	1.2	3.7	195	0	277	9	0	200	Yes	TO-247-3LD
AFGHL40T120RLD	IGBT - Automotive Grade 1200 V 40 A	AEC Qualified PPAP Capable Pb-free Halide free	Active	1200	40	1.75	1.51	1.2	3.4	195	0	395	9	0	264	Yes	TO-247-3LD
AFGHL40T65RQDN	IGBT - 650 V 40 A - Short circuit rated FS4 - Automotive qualified	AEC Qualified PPAP Capable Pb-free	Active	650	40	1.6	1.72	0.74	1.14	43.82	18.8	47.34	5		288	Yes	TO-247-3LD
AFGHL40T65SPD	IGBT, 650V 40A in TO247 providing enhanced Final Test coverage for better and robuster performance.	AEC Qualified PPAP Capable Pb-free	Active														TO-247-3LD
AFGHL40T65SQ	AEC 101 Qualified, 650V, 40A Fieldstop 4 trench IGBT Stand alone IGBT without co-pack DIODE	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	50	1.6		0.052	0.138			80			238	No	TO-247-3LD
AFGHL40T65SQD	AEC 101 Qualified, 650V, 40A Fieldstop 4 trench IGBT	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	40	1.6	2.2	0.052	0.138	31.8		80			238	Yes	TO-247-3LD
AFGHL50T65RQDN	IGBT - 650 V 40 A - Short circuit rated FS4 - Automotive qualified	AEC Qualified PPAP Capable Pb-free	Active	650	50	1.6	1.65	0.83	3.09	57	20	65	5		346	Yes	TO-247-3LD
AFGHL50T65SQ	AEC 101 Qualified, 650V, 50A Fieldstop 4 trench IGBT, Stand alone IGBT without co-packed diode	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	50	1.6		0.045	0.18			99			268	No	TO-247-3LD
AFGHL50T65SQD	AEC 101 Qualified, 650V, 50A Fieldstop 4 trench IGBT	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	50	1.6	2.2	0.045	0.18	31		99			268	Yes	TO-247-3LD
AFGHL50T65SQDC	Hybrid IGBT, 650V, 50A Fieldstop 4 trench IGBT with SiC-SBD	AEC Qualified PPAP Capable Pb-free	Active	650	50	1.6	1.45					94				Yes	TO-247-3LD
AFGHL75T65SQD	AEC 101 Qualified, 650V, 75A Fieldstop 4 trench IGBT	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	75	1.6	2	0.18	0.76	76		128			375	Yes	TO-247-3LD
AFGHL75T65SQDC	IGBT with SiC copack diode	AEC Qualified PPAP Capable Pb-free	Active	650	75	1.6	1.45	0.24	0.48			139			375	Yes	TO-247-3LD
AFGHL75T65SQDT	AEC 101 Qualified, 650V, 75A Fieldstop 4 trench IGBT	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	75	1.6	1.8	0.18	0.76	76		128			375	Yes	TO-247-3LD
AFGY100T65SPD	IGBT - 650 V 100 A FS3 for EV traction inverter application	AEC Qualified PPAP Capable Pb-free	Active	650	100	1.6	1.3	2.7	5.1	105		109	6		330	Yes	TO-247-3
AFGY120T65SPD	IGBT - 650 V 120 A FS3 for EV traction inverter application	AEC Qualified PPAP Capable Pb-free	Active	650	120	1.6	1.4	3.8	6.6	107		125	6		375	Yes	TO-247-3
AFGY160T65SPD-B4	IGBT - 650V, 160A Field Stop Trench IGBT with VCESAT and VTH Binning	AEC Qualified PPAP Capable Pb-free	Active	650	240	1.6	1.4	5.7	12.4	132		163	6		882	Yes	TO-247-3
FGB20N60S_F085	IGBT, 600V, 20A, 2.2V, D2PAK<BR>Field Stop	AEC Qualified PPAP Capable Pb-free	Active	600	40		1.9	0.13	0.31	111	-	63	-	-	208		D2PAK-3 / TO-263-2
FGB3040CS_F085	IGBT, 430V, 19A, 1.6V, 300mJ, D2PAK, Current Sensing EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	430	19	1.85	-	-	-	1500	-	15	-	-	150	Yes	D2PAK-6 / TO-263-6
FGB3040G2-F085C	Ignition IGBT, 400V, 26A, 1.35V, 300mJ, D2PAK<BR>EcoSPARK®2, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	400	26	1.5				1900		21			150		D2PAK-3 / TO-263-2
FGB3040G2_F085	Ignition IGBT, 400V, 26A, 1.35V, 300mJ, D2PAK<BR>EcoSPARK®2, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	-			-	-	-	1900	-	21	-	-	150	-	D2PAK-3 / TO-263-2
FGB3056_F085	IGBT, EcoSPARK® 300mJ, 560V, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	560	29	1	-	-	-	1480	-	15.6	-	-	200	-	D2PAK-3 / TO-263-2
FGB3236_F085	IGBT, 360V, 27A, 1.32V, 320mJ, EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	360			-	-	-	1700	-	-	-	-	187	Yes	D2PAK-3 / TO-263-2
FGB3245G2_F085	Ignition IGBT, 450V, 23A, 1.3V, 320mJ, EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	450			-	-	-	2600	-	-	-	-	150	Yes	D2PAK-3 / TO-263-2
FGB3440G2_F085	IGBT, 400V, 25A, 1.30V, 335mJ, EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	400			-	-	-	2000	-	-	-	-	166	-	D2PAK-3 / TO-263-2
FGB40T65SP_F085	IGBT, 650V, 40A Field Stop Trench	AEC Qualified PPAP Capable Pb-free	Active	650			2	0.28	0.97		-	36	5	-	267		D2PAK-3 / TO-263-2
FGBS3040_F085	Integrated Smart Ignition Coil Driver	AEC Qualified PPAP Capable Pb-free Halide free	Active	600	6.8	-	-	-	-	-	-	-	-	-	150	-	D2PAK-7 / TO-263-7
FGD2736G3-F085V	IGBT, EcoSPARK® 3 270mJ, 360V, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	360	18	1.65	-	-	-	3000	-	-	-	-	150	No	DPAK-3
FGD2736G3_F085	IGBT, EcoSPARK® 3 270mJ, 360V, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	360			-	-	-	3000	-	-	-	-	150	-	DPAK-3 / TO-252-3
FGD3040G2-F085C	Ignition IGBT, N-Channel Ignition, DPAK, 26A, 1.35V, 300mJ <BR>EcoSPARK®2	AEC Qualified PPAP Capable Pb-free Halide free	Active	400	26	1.5				1900		21			150		DPAK-3 / TO-252-3
FGD3040G2-F085V	Ignition IGBT, N-Channel Ignition, DPAK, 26A, 1.35V, 300mJ <BR>EcoSPARK®2	AEC Qualified PPAP Capable Pb-free Halide free	Active														DPAK-3
FGD3040G2_F085	Ignition IGBT, 400V, 26A, 1.35V, 300mJ, DPAK<BR>EcoSPARK®2, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	400			-	-	-	1900	-	21	-	-	150	-	DPAK-3 / TO-252-3
FGD3050G2	Ignition IGBT, 500V, 27A, 1.3V, 300mJ, DPAK<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	495	32	1.1			300	1.6		22		300	150		DPAK-3 / TO-252-3
FGD3050G2V	Ignition IGBT, 500V, 27A, 1.3V, 300mJ, DPAK<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active														DPAK-3
FGD3245G2-F085C	Ignition IGBT, N-Channel Ignition, DPAK, 450V, 1.3V, 320mJ,<BR>EcoSPARK® II	AEC Qualified PPAP Capable Pb-free Halide free	Active	450	23	1.25				2600		23			150		DPAK-3 / TO-252-3
FGD3245G2-F085V	Ignition IGBT, N-Channel Ignition, DPAK, 450V 1.3V, 320mJ,<BR>EcoSPARK® II	AEC Qualified PPAP Capable Pb-free Halide free	Active														DPAK-3
FGD3245G2_F085	Ignition IGBT, 450V, 23A, 1.3V, 320mJ, DPAK<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	450			-	-	-	2600	-	23	-	-	150	-	DPAK-3 / TO-252-3
FGD3325G2-F085V	IGBT, 250V, 25A, 1.35V, 330mJ, EcoSPARK®2, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active														DPAK-3
FGD3325G2_F085	IGBT, 250V, 25A, 1.35V, 330mJ, EcoSPARK®2, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	250			-	-	-	1200	-	21	-	-	150	-	DPAK-3 / TO-252-3
FGD3440G2-F085V	IGBT, 400V, 25A, 1.30V, 335mJ, DPAK<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active														DPAK-3
FGD3440G2_F085	IGBT, 400V, 25A, 1.30V, 335mJ, DPAK<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	400			-	-	-	2000	-	24	-	-	166	-	DPAK-3 / TO-252-3
FGD3N60LSD	IGBT, 600V, 3A, 1.2V, DPAK, Planar	AEC Qualified PPAP Capable Pb-free Halide free	Active	600	6	1.2	1.5	1	0.25	234	2.64	12.5	-	-	40	Yes	DPAK-3 / TO-252-3
FGH40N60SM_F085	IGBT, Field Stop, 600 V, 40 A, 1.9 V	AEC Qualified PPAP Capable Pb-free	Active	600	80		2.3	0.3	0.92	36	-	119	-	-	349		TO-247-3
FGI3040G2_F085	Ignition IGBT, 400V, 26A, 1.35V, 300mJ, TO-262<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	400			-	-	-	1900	-	21	-	-	150	-	I2PAK-3 / D2PAK-3 STRAIGHT LEAD
FGI3236_F085	IGBT, 360V, 27A, 1.32V, 320mJ, TO-262<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	360			-	-	-	1700	-	20	-	-	187	-	I2PAK-3 / D2PAK-3 STRAIGHT LEAD
FGP3040G2_F085	IGBT, 400V, 26A, 1.35V, 300mJ, TO-220<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	400			-	-	-	1.9	-	21	-	-	150	Yes	TO-220-3
FGP3440G2_F085	IGBT, 400V, 25A, 1.30V, 335mJ, TO-220<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	400			-	-	-	2000	-	24	-	-	166	Yes	TO-220-3
FGY120T65S_F085	IGBT, 650V, 120A Field Stop, Trench With Soft Fast Recovery Diode	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	240		1.3	3.5	6.8	123	-	162	6	-	882		TO-247-3
FGY160T65S_F085	IGBT, 650V, 160A Field Stop, Trench With Soft Fast Recovery Diode	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	240		1.4	5.7	12.4	132	-	163	6	-	882		TO-247-3
ISL9V2040D3STV	IGBT, 430V, 10A, 1.95V, 200mJ, DPAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	400	10	1.45						12					DPAK-3
ISL9V2040D_F085	IGBT, 430V, 10A, 1.95V, 200mJ, DPAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	400	10	1.9	-	-	-	2170	-	12	-	-	130	-	DPAK-3 / TO-252-3
ISL9V2040S_F085	IGBT, 430V, 10A, 1.95V, 200mJ, DPAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	400	10	1.9	-	-	-	2170	-	12	-	-	130	-	D2PAK-3 / TO-263-2
ISL9V2540S3ST-F085C	IGBT, 430V, 15A, 1.77V, 250mJ, D2PAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	420	15.5	1.37								250			D2PAK-3 / TO-263-2
ISL9V2540S_F085	IGBT, 430V, 15A, 1.77V, 250mJ, D2PAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	400	15	1.8	-	-	-	2170	-	15.1	-	-	166.7	-	D2PAK-3 / TO-263-2
ISL9V3036D3STV	IGBT, 360V, 17A, 1.58V, 300mJ, D2PAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	360	21							17					DPAK-3
ISL9V3036S3ST-F085C	IGBT, 360V, 17A, 1.58V, 300mJ, D2PAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	360	21	1.58								300			D2PAK-3 / TO-263-2
ISL9V3036S_F085	IGBT, 360V, 17A, 1.58V, 300mJ, D2PAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	360	17	1.58	-	-	-	2100	-	17	-	-	150	-	D2PAK-3 / TO-263-2
ISL9V3040D3ST-F085C	IGBT, N-Channel Ignition, DPAK, 17A, 1.58V, 300mJ <BR>EcoSPARK® I	AEC Qualified PPAP Capable Pb-free	Active	400	17	1.6						17			150		DPAK-3 / TO-252-3
ISL9V3040D3STV	IGBT, N-Channel Ignition, DPAK, 17A, 1.58V, 300mJ <BR>EcoSPARK® I	AEC Qualified PPAP Capable Pb-free Halide free	Active	400	17	1.6	-	-	-	-	-	17	-	-	150	No	DPAK-3
ISL9V3040D_F085	IGBT, 400V, 17A, 1.58V, 300mJ, DPAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	400	17	1.6	-	-	-	2100	-	17	-	-	150	-	DPAK-3 / TO-252-3
ISL9V3040P3	IGBT, 400V, 17A, 1.58V, 300mJ, TO-220<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	400	17	1.6	-	-	-	2100	-	17	-	-	150	-	TO-220-3
ISL9V3040P3-F085C	IGBT, 400V, 17A, 1.58V, 300mJ, TO-220<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	400	17	1.6				2100		17		300	150		TO-220-3
ISL9V3040S3ST-F085C	IGBT, N-Channel Ignition, D2PAK, 400V, 17A, 1.58V, 300mJ<BR>EcoSPARK® I	AEC Qualified PPAP Capable Pb-free	Active	400	17	1.6				1900					150		D2PAK-3 / TO-263-2
ISL9V3040S_F085	IGBT, 400V, 17A, 1.58V, 300mJ, D2PAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	400	17	1.6	-	-	-	2100	-	17	-	-	150	-	D2PAK-3 / TO-263-2
ISL9V5036P_F085	IGBT, 360V, 31A, 1.17V, 500mJ, TO-220<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	360			-	-	-	2100	-	32	-	-	250	-	TO-220-3
ISL9V5036S3ST	IGBT, 360V, 31A, 1.17V, 500mJ, D2PAK<BR>EcoSPARK® II, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	360	31	1.6	-	-	-	2100	-	32	-	-	250	-	D2PAK-3 / TO-263-2
ISL9V5045S3ST	IGBT, 450V, 43A, 1.25V, 500mJ, D2PAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free	Active	450	43	1.6	-	-	-	2100	-	32	-	-	300	-	D2PAK-3 / TO-263-2
ISL9V5045S_F085	IGBT, 450V, 43A, 1.25V, 500mJ, D2PAK<BR>EcoSPARK® I, N-Channel Ignition	AEC Qualified PPAP Capable Pb-free Halide free	Active	450			-	-	-	2100	-	32	-	-	300	-	D2PAK-3 / TO-263-2
PCGA160T65NF8	IGBT, 650 V, 160 A Field Stop Trench Gen3 (FS3) Bare Die. Pairing with PCRKA16065F8	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	-	2.15	-	-	-	-	-	167	6	-	-	No
PCGA200T65NF8	IGBT 650 V, 200 A Field Stop Trench Gen3 (FS3) Bare Die. Pairing with PCRKA20065F8	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	200	1.53	-	-	-	-	-	229	5	-	-	No
PCGA200T65NF8M1	IGBT 650 V, 200 A Field Stop Trench Gen3 (FS3) Bare Die with Solderable/Sinterable Top Metal. Pairing with PCRKA20065F8M1	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	200	1.53							5
PCGA300T65DF8	IGBT, 650 V, 300 A Field Stop Trench	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	-	1.15	-	-	-	-	-	312	5	-	-	No
PCGA300T65DF8M1	IGBT 650 V, 300 A Field Stop Trench Gen3 (FS3) Bare Die with Solderable/Sinterable Top Metal. Pairing with PCRKA30065F8M1	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	300	1.25							5
PCGLA200T75NF8	VE-Trac Chip: IGBT Bare Die for Automotive, 750V, 200A	AEC Qualified PPAP Capable Pb-free Halide free	Active	750	200	1.45							4
PCRKA16065F8	Extremefast (EF) diode 650V / 160A	AEC Qualified PPAP Capable Pb-free Halide free	Active	650	-	-	1.4	-	-	132	50	-	-	-	-	No
PCRKA20065F8M1	Extremefast (EF) diode, 650 V, 200 A, Bare Die with Solderable Top Metal. Pairing with PCGA200T65NF8M1	AEC Qualified PPAP Capable Pb-free Halide free	Active
PCRKA20075F8	VE-Trac Chip: Diode EF2 Bare Die for Automotive, 750V, 200A	AEC Qualified PPAP Capable Pb-free Halide free	Active	750	200		1.7
PCRKA30065F8M1	Extremefast (EF) diode, 650 V, 300 A Bare Die with Solderable Top Metal. Pairing with PCGA300T65DF8M1	AEC Qualified PPAP Capable Pb-free Halide free	Active
